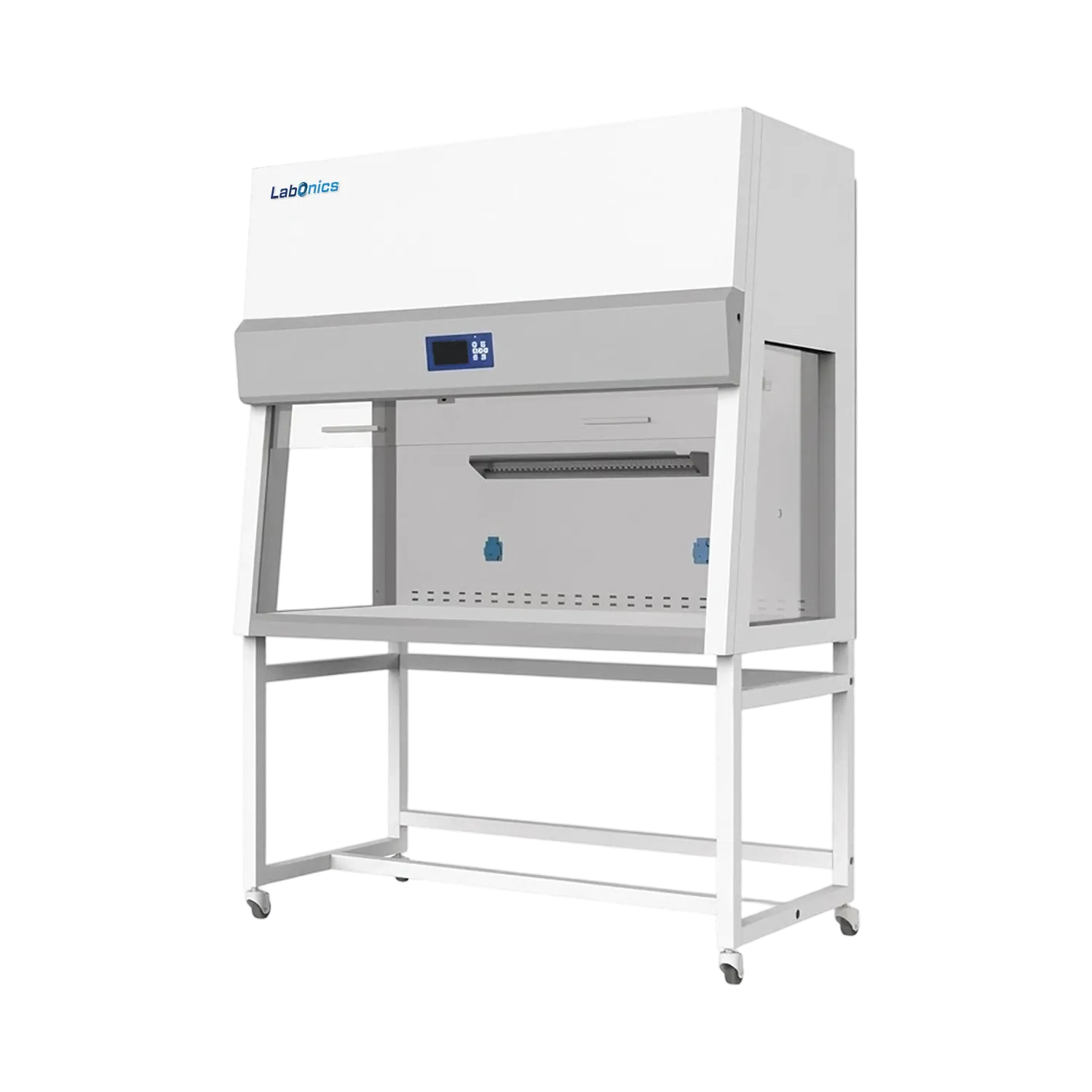

PCR Cabinet Labo105PCR

Overview

PCR Cabinet Labo105PCR provides a controlled work area for PCR experiments, helping reduce contamination during DNA/RNA workflows. Its 304 stainless steel work surface sits behind a UV-resistant tempered glass sash provides room for routine PCR procedures, while the HEPA filtration system effectively remove airborne particles from the work area. A real time LCD display, sash interlock with fan, and filter status for convenient operation keeps operators safe during setup and teardown.

Specifications:

Internal Dimensions (W x D x H)	1220 x 620 x 625 mm
External Dimensions (W x D x H)	1320 × 710 × 1850 mm
Work Surface Height	750 mm
Air Flow Velocity	0.2~0.5 m/s, speed adjustable
Pre-Filter	1pc, polyester fibre, washable
HEPA Filter	1pc, > 99.995% at particle size of 0.3μm
Cleanliness	ISO Class 5
Indicators	HEPA filter, UV life indicators
Display	LCD
Interlock	Front sliding sash interlock with fan and UV lamp
Main Body Material	Powder-coated electro-galvanized steel
Work Surface	304 stainless steel
Front Window	Manual sliding sash
Side Window	5 mm UV resistant tempered glass
UV Lamp	30W * 1, 253.7 nm emission, 0-999min timing
LED Lamp	9.6W *1
Illumination	≥900Lux
Noise	≤62dB(A)
Power Consumption	285 W (does not include socket loading power consumption)
Power Supply	AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Packing Dimensions	1460 x 990 x 1325 mm
Gross Weight	255 kg

Features:

- HEPA filtration to maintain clean work environment
- 304 stainless steel worksurface for durable operation
- Real time LCD monitoring
- UV Decontamination for routine DNA and RNA workflows
- IV bar and waterproof socket
- Adjustable air flow function

Applications:

Suitable for PCR experiments, DNA/RNA preparation, molecular biology, genetic research, sample preparation, and nucleic acid amplification workflows.
